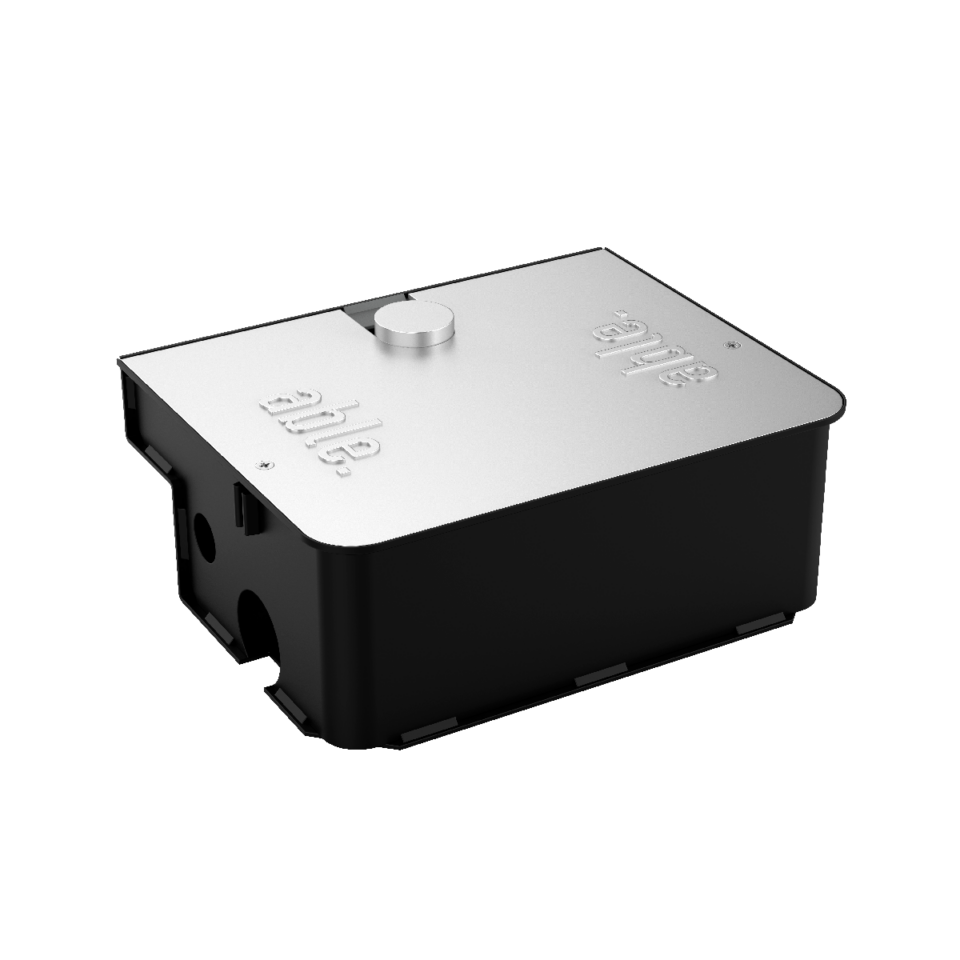

UG MEDIUM 3500LC 230

SKU 22Y014

230V electromechanical moto reducer for underground mounting. For swing gates with leaves up to 3.5 m. Cable 7 m

download technical sheet

download manuals

ug-medium-3500lc-230

Features

3.5 m Power

230 V Voltage

328 x 398 x 224 mm Dimensions

224

328 x 398

product

technical sheet and download

UG MEDIUM 3500LC 230

Characteristics

Sealed motor reducer
Opening up to 110° with the levers supplied
Opening up to 360° with the accessory lever
7M version with 7 m long power cable
The special mounting holes allow UG motors to be installed inside numerous existing models of foundation boxes
Adjustable opening and closing mechanical stop

UG MEDIUM 3500LC 230

To learn more about operation and installation of the products, download the catalogue the installation guide and all the manuals

Data

Product Data

Code

22Y014

Weight (kg)

11

Maximum gate weight (kg)

800

Degree of protection (IP)

67

Operating Temperature (°C)

-20 +55

Electrical Data

Supply (Vac - Hz)

230 - 50

Full load absorption (A)

2,4

Maximum electric power (W)

550

Consumption standby

<0.5

Mechanical data

Operating time of the leaf 0-90° (s)

17

Maximum torque (N)

320

Working cycle (cycles/hour)

32

Technical features

Dimensions

Facility

1 Actuator

2 Transmitter

3 Photocells

4 Flashing light with built-in antenna

5 Control unit

6 Receiving module

A Digital or Key switch

B Pillar photocells

C Safety edges

D Solar system (only 24V actuators)
