Home Products Doors & Garages DR-Series DR-Series Medium DR MEDIUM 260B 230
Features
260 Kg Power
230 V Voltage
350 x 200 mm Dimensions
200
350
product
technical sheet and download
DR MEDIUM 260B 230

Characteristics

  • Wires protected by special plastic container
  • External limit switch unit easily accessible
  • Simple, intuitive limit switch adjustment
  • Pre-wired condenser
  • Shaft adapter ø 48 and crown ø 220 included (DR MEDIUM 260B 230)
  • Shaft adapter ø 76 included (DR MEDIUM 380B 230)
DR MEDIUM 260B 230
To learn more about operation and installation of the products, download the catalogue the installation guide and all the manuals

Data

Product Data
Code
26Y003
Weight (kg)
9
Maximum shutter weight (kg)
260
Shutters maximum height (m)
7
Operating temperature (C°)
-20 +55
Electrical Data
Supply (Vac - Hz)
230 - 50
Maximum electric power (W)
670
Absorbed current (A)
2.9
Mechanical data
Motor crown speed (rpm)
10
Torque (Nm)
260
Rolling shutter shaft ⌀ (B) (mm)
60/48
Motor crown ⌀ (A) (mm)
200/220

Dimensions

Facility

1 Actuator
2 Transmitter
3 Control unit
4 Receiving module
A Key switch
B Photocells
C Flashing light with built-in antenna
D Digital radio switch
E Safety edges
Kit
Do you need help to choose the most suitable Able product for you? Follow our guide, begin by choosing the type of application.

Compatible products

cx-top

CX TOP

sku 12Y008
description
Top control unit for damper automations – Output for 1 motor
Model detail
cx-basic-433

CX BASIC 433

sku 12Y007
description
Top control unit for damper automations – Output for 1 motor – Radio 433MHz
Model detail

Radio Kit

kl-rx-mr-2-433

KL RX MR 2 433

sku 28Y001
description
Kit radio plugin with two remotes 433Mhz
Model detail
kl-rx-mr-4-433

KL RX MR 4 433

sku 28Y002
description
Kit radio plugin with four remotes 433 MHz
Model detail
kl-rx-wal-4-433

KL RX WAL 4 433

sku 28Y003
description
Kit radio plugin with two remotes 433Mhz
Model detail

Related accessories

ax-key

AX-KEY

sku
description
key switch, wired switch or radio switch
Model detail
tx-toh

TX-TOH

sku
description
Personal Pass Transmitters 433.92 – 868.30 MHz rolling code
Model detail
photocell

Photocell

sku
description
Photocell
Model detail
other-accessories

Other accessories

sku
description
All the accessories that allow you to customize and give that extra touch to your installation
Model detail

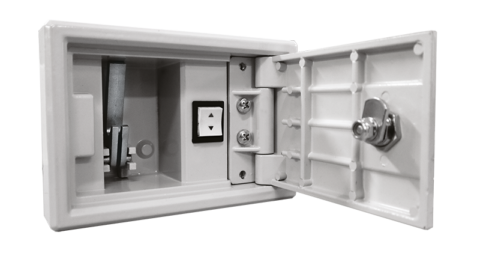

ax-key-sw3
